MASTER FILL BLEND CABINETS

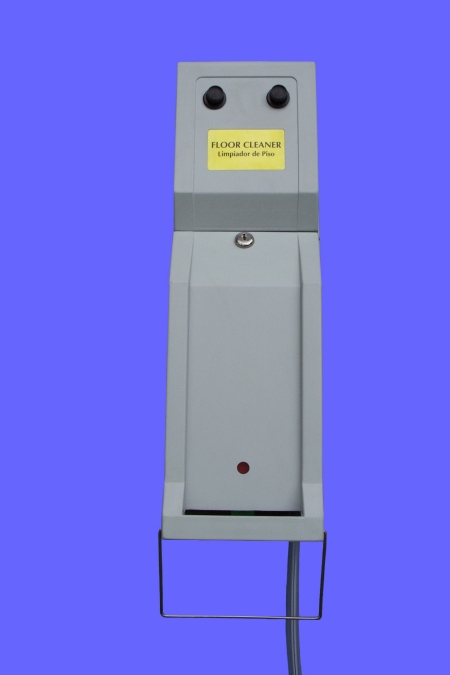

The 1501-1 SERIES MASTER FILL BLENDING STATION FOR FILLING BOTTLES	The 1601-1 SERIES MASTER FILL BLENDING STATION WITH DUAL DILUTION SELECTOR VALVE FOR FILLING BOTTLES	The 1701-1-4 MASTER FILL BLENDING STATION FOR FILLING BOTTLES & BUCKETS	The 1702-1-4 SERIES MASTER FILL BLENDING STATION WITH DUAL DILUTION SELECTOR VALVE FOR FILLING BOTTLES & BUCKETS
The 1501-4 SERIES MASTER FILL BLENDING STATION FOR FILLING BUCKETS	The 1601-4 SERIES MASTER FILL BLENDING STATION WITH DUAL DILUTION SELECTOR VALVE FOR FILLING BUCKETS		The 1704-1-4 SERIES MASTER FILL BLENDING STATION WITH FOUR DILUTION SELECTOR VALVE FOR FILLING BOTTLES & BUCKETS

Two Coupled Cabinets

1502-1-1 --- (2) 1 GPM Non-Air Gap
1502-1-4 --- 1&4 GPM Non-Air Gap
1502-4-4 --- (2) 4 GPM Non-Air Gap

Three Coupled Cabinets

1503-1-1-1--- (3) 1 GPM Non-Air Gap
1503-1-1-4 --- (3) 1&(1) 4 GPM Non-Air Gap 1503-1-4-4 --- (1) 1GPM & (2) 4 GPM Non-Air Gap

Four Coupled Cabinets

1504-1-1-1-1 (4) 1 GPM Non-Air Gap
1504-1-1-1-4 (3) 1&(1) 4 GPM Non-Air Gap

OTHER COMBINATIONS AVAILABLE UPON REQUEST

FEATURES: 1) Push Button Valve Actuation 2) Sturdy Plastic Case 3) Molded Plastic Chemical Injectors For Long Life and Low Maintenance 4) Color Coded Metering Tips to Precisely Meter the Chemical Induction Rate 5) Air Gap or Non-Air Gap Proportioners Available 6) Attach Directly to Water Line 7) High and Low Flow Proportioners for Bucket or Bottle Filling 8) Color Coded Product Labeling System Available 9) Locking or Non-Locking Push Buttons Available 10) High Induction Proportioners for Feed Rates Up To 1-1Ratio Available 11) Units Can Be Close Coupled to Provide a Compact Mixing Station.			SPECIFICATIONS: PRESSURE RATING: 125 PSI MAX TEMPERATURE RATING: 160 o F FLOW RATE: LOW FLOW 1 GPM AT 40 PSI HIGH FLOW 4 GPM AT 40 PSI INDUCTION RATE: ¼ TO 35 OZ/GAL
ACCESSORIES:	Backflow Preventer	High Capacity Proportioner 1-1 Dillutiions	Coupler Fitting
