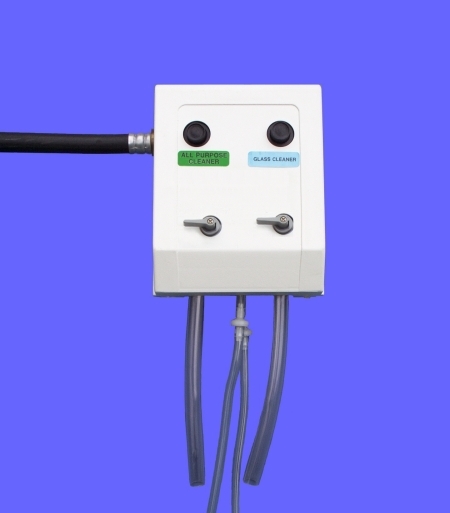

The 1102-1-4  SERIES MASTER FILL BLENDING STATION FOR FILLING BOTTLES AND BUCKETS The 1202-1-4  SERIES MASTER FILL BLENDING STATION WITH DUAL SELECTOR VALVE ON ONE STATION FOR FILLING BOTTLES AND BUCKET FILL The 1222-1-4  SERIES MASTER FILL BLENDING STATION WITH DUAL SELECTOR VALVE ON BOTH STATION FOR FILLING BOTTLES AND BUCKET FILL

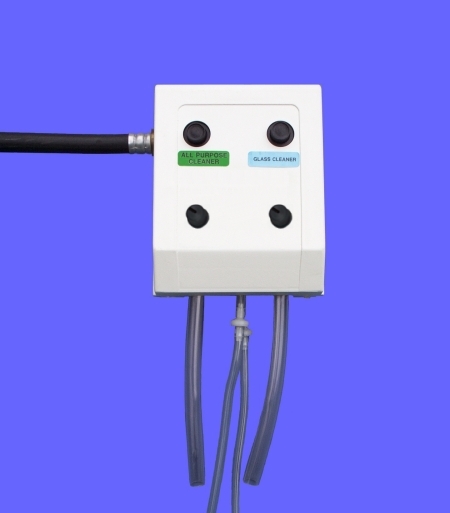

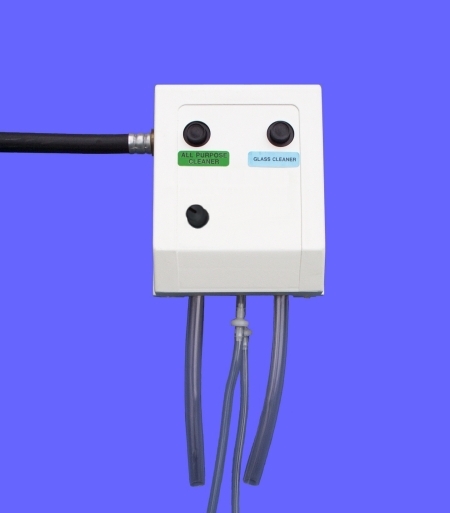

  The 1402-1-4  SERIES MASTER FILL BLENDING STATION WITH FOUR DILUTION SELECTOR VALVE ON ONE STATION FOR FILLING BOTTLES AND BUCKET FILL The 1422-1-4  SERIES MASTER FILL BLENDING STATION WITH FOUR DILUTION SELECTOR VALVE ON  BOTH STATION FOR FILLING BOTTLES AND BUCKET FILL
FEATURES:

1) Push Button Valve Actuation
2) Sturdy Plastic Case
3) Molded Plastic Chemical Injectors For Long Life and Low Maintenance
4) Color Coded Metering Tips to Precisely Meter the Chemical Induction Rate
5) Air Gap or Non-Air Gap Proportioners Available
6) Attach Directly to Water Line
7) High and Low Flow Proportioners for Bucket or Bottle Filling
8) Color Coded Product Labeling System
9) Locking or Non-Locking Push Buttons Available
10) High Induction Proportioners for Feed Rates Up To 1-1Ratio Available
11) Units Can Be Close Coupled to Provide a Compact Mixing Station.


SPECIFICATIONS:


PRESSURE RATING:    125 PSI MAX
TEMPERATURE RATING:   160 o F
FLOW RATE:    LOW FLOW  1 GPM AT 40 PSI
                         HIGH FLOW 4 GPM AT 40 PSI
INDUCTION RATE:   TO 35 OZ/GAL

ACCESSORIES: Pressure Regulator

High Capacity Proportioner 1-1 Dillutiions

Coupler Fitting  Bottle Rack
