MASTER FILL BLEND STATIONS

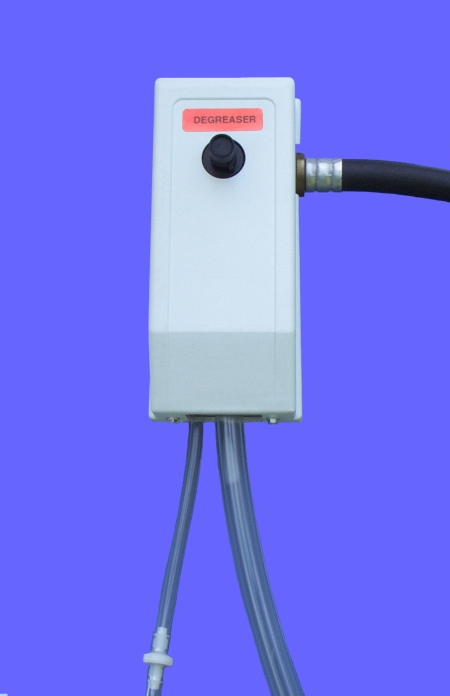

The 1101-1  SERIES MASTER FILL BLENDING STATION FOR FILLING BOTTLES
The 1101-4  SERIES MASTER FILL BLENDING STATION FOR FILLING BUCKET
The 1201-1  MASTER FILL BLENDING STATION WITH DUAL SELECTOR FOR FILLING BOTTLES

The 1201-4  MASTER FILL BLENDING STATION WITH DUAL SELECTOR FOR FILLING BUCKET

The 1301-1  MASTER FILL BLENDING STATION WITH THREE DILUTION SELECTOR FOR FILLING BOTTLES

The 1301-4  MASTER FILL BLENDING STATION WITH THREE DILUTION SELECTOR FOR FILLING BUCKET

The 1321-1  MASTER FILL BLENDING STATION WITH THREE PRODUCT SELECTOR FOR FILLING BOTTLES

The 1321-4  MASTER FILL BLENDING STATION WITH THREE PRODUCT SELECTOR FOR FILLING BUCKET

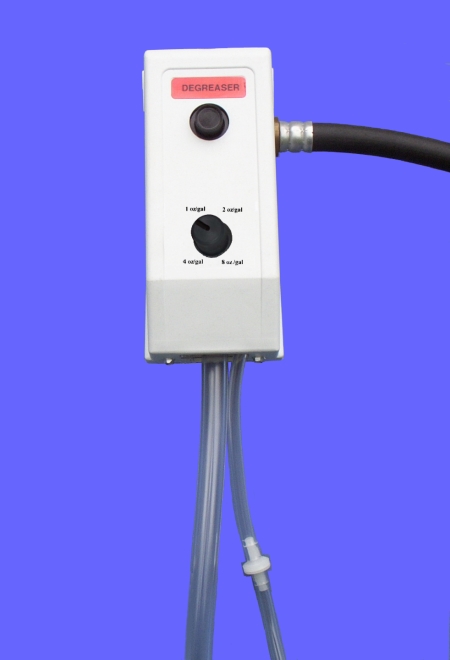

The 1401-1  MASTER FILL BLENDING STATION WITH FOUR DILUTION SELECTOR FOR FILLING BOTTLES

The 1401-4  MASTER FILL BLENDING STATION WITH FOUR DILUTION SELECTOR FOR FILLING BUCKET

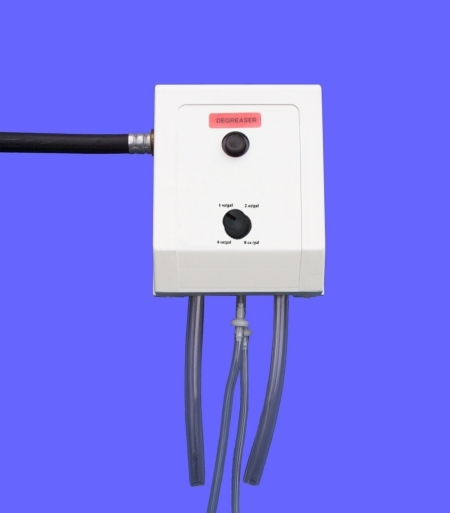

The 1421-1  MASTER FILL BLENDING STATION WITH FOUR PRODUCT SELECTOR FOR FILLING BOTTLES

The 1421-4  MASTER FILL BLENDING STATION WITH FOUR PRODUCT SELECTOR FOR FILLING BUCKET

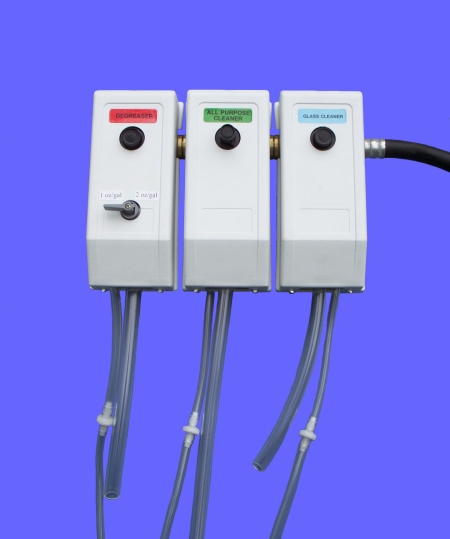

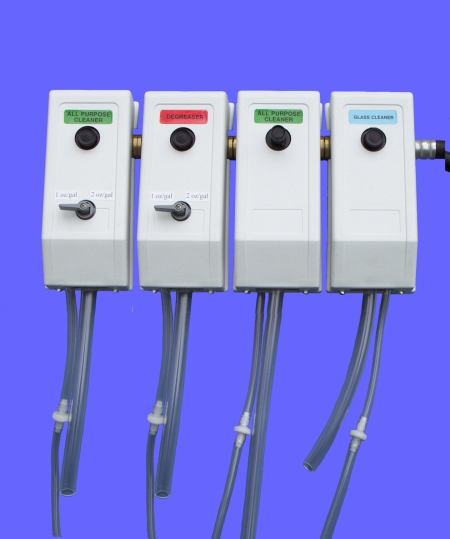

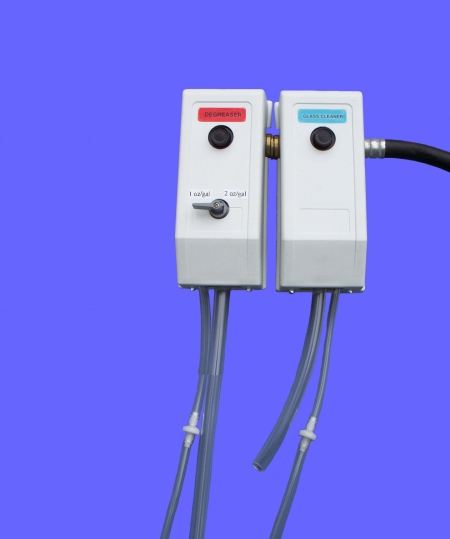

UNIT MAY BE COUPLED TO MEET ANY DISPENSING REQUIREMENT
FEATURES:

1) Push Button Valve Actuation
2) Sturdy Plastic Case
3) Molded Plastic Chemical Injectors For Long Life and Low Maintenance
4) Color Coded Metering Tips to Precisely Meter the Chemical Induction Rate
5) Air Gap or Non-Air Gap Proportioners Available
6) Attach Directly to Water Line
7) High and Low Flow Proportioners for Bucket or Bottle Filling
8) Color Coded Product Labeling System
9) Locking or Non-Locking Push Buttons Available
10) High Induction Proportioners for Feed Rates Up To 1-1Ratio Available
11) Units Can Be Close Coupled to Provide a Compact Mixing Station.


SPECIFICATIONS:


PRESSURE RATING:    125 PSI MAX
TEMPERATURE RATING:   160 o F
FLOW RATE:    LOW FLOW  1 GPM AT 40 PSI
                         HIGH FLOW 4 GPM AT 40 PSI
INDUCTION RATE:   TO 35 OZ/GAL

ACCESSORIES: Pressure Regulator

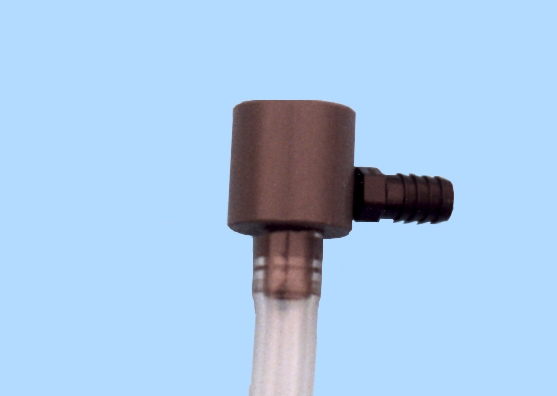

High Capacity Proportioner 1-1 Dillutiions

Coupler Fitting  Bottle Rack
